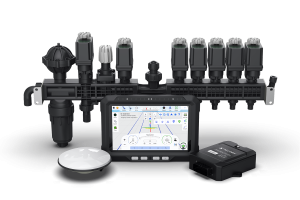

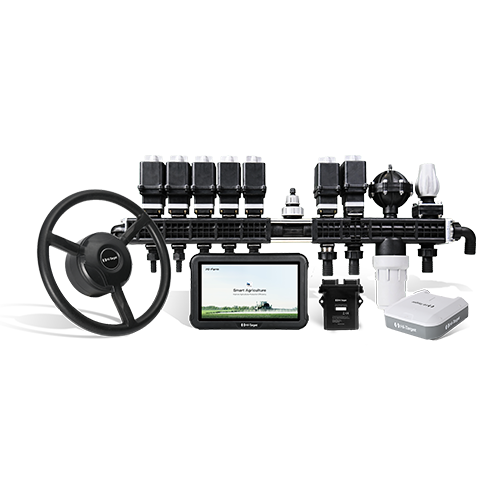

iSpray S150 Spraying Control Auto-Steering System
The iSpray S150 Spraying Control System is an intelligent, precision agriculture solution designed to deliver highly accurate spraying while reducing chemical waste. With GNSS-guided auto-steering, ±3% spray accuracy, multi-section control, and real-time digital spray logs, it helps farmers achieve consistent coverage, improved efficiency, and lower operating costs across any field or sprayer type.
Description
The iSpray S150 Spraying Control System is a next-generation precision spraying solution engineered to transform how farmers manage crop protection, fertilizer applications, and field efficiency. Built for modern agriculture, it provides unparalleled control, precision, and automation—helping operators achieve uniform coverage with minimal waste while saving time, inputs, and labor.
Designed to work with self-propelled, mounted, and trailed sprayers, the iSpray S150 delivers highly accurate spraying through advanced GNSS guidance and intelligent flow management. Whether moving across straight rows or navigating turns, the system automatically adjusts output to maintain consistent application rates, ensuring every part of the field gets the correct amount—no more misses, overlaps, or chemical overuse.

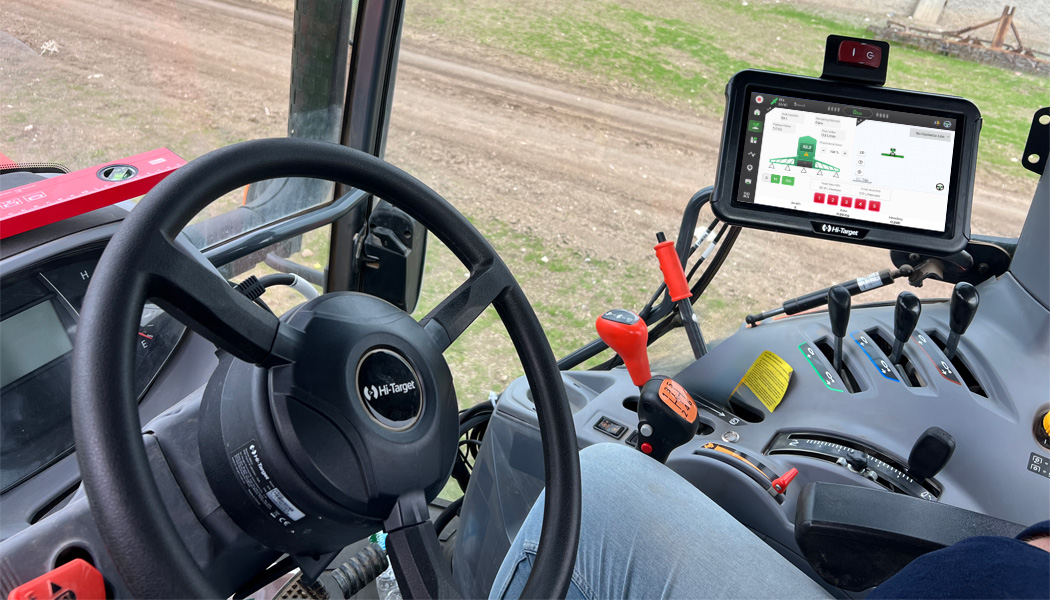

With automatic and manual mode switching, operators can choose full automation or take control when needed, making the system suitable for both beginners and experienced applicators. Its multi-section smart boom control enables one-touch activation of all sections or precise individual section management, allowing for exceptional efficiency and reduced waste in irregularly shaped fields.
The integrated GNSS receiver supports multiple satellite constellations—including GPS, BDS, Galileo, GLONASS, QZSS, and SBAS—ensuring highly stable signal reception and reliable steering guidance. Paired with the electric steering wheel, the system delivers smooth, accurate auto-steering performance that improves consistency and reduces operator fatigue.
At the heart of the system is a rugged 10.1-inch Android-based tablet, offering a simple, intuitive interface that consolidates spraying control and auto-steering onto a single screen. Digital spray logs help farmers track applications, improve field records, and support precision agriculture workflows.
Built to withstand tough farming conditions, the iSpray S150 features an IP65-rated display, high-torque steering motor, advanced flow meter support, and a wide adjustable spray volume range of 50–2000 L/ha. From small farms to large-scale operations, it provides unmatched accuracy, efficiency, and reliability in every spraying pass.
Additional information
| General | Product Name: iSpray S150 Product Type: Precision Spraying Control System Applications: Crop protection, fertilizer spraying, precision agriculture, field mapping, chemical reduction, yield optimization |
|---|---|
| Spraying System | Spray Accuracy: ±3% Variable Rate Spraying: Automatic adjustment based on vehicle speed Number of Sections: 5 Spray Volume Range: 50–2000 L/ha Flow Meter Control Range: 0–200 L/min Operating Pressure Range: 0–2 MPa Control Features: Smart section control One-touch boom activation Auto/manual mode switching Digital spray logs |
| GNSS Receiver | Channels: 1408 Supported Satellite Systems: GPS: L1C/A, L2P(Y), L2C, L5 BDS: B1I, B2I, B3I Galileo: E1, E5a, E5b, E6 GLONASS: L1, L2 QZSS: L1C/A, L2C, L5 SBAS: L1C/A L-Band support Integration: Fully integrated with auto-steering system |
| Auto-Steering System | Steering Motor Torque: 7 N·m Wheel Diameter: 420 mm Motor Height: 76 mm Steering Type: Electric steering wheel |
| Control Tablet | Display Size: 10.1 inches Dimensions: 281 × 181 × 42 mm Operating System: Android 11 CPU: Quad-Core, 1.2 GHz IP Rating: IP65 |
| Power | Operating Voltage: 12V |
| Key Features | Real-time variable rate control Smart multi-section boom control GNSS-based auto-steering High-accuracy spraying (±3%) Field coverage visualization One-screen integrated control Comprehensive logging and data storage |
