V500 GNSS RTK System
₦3,200,000.00 VAT

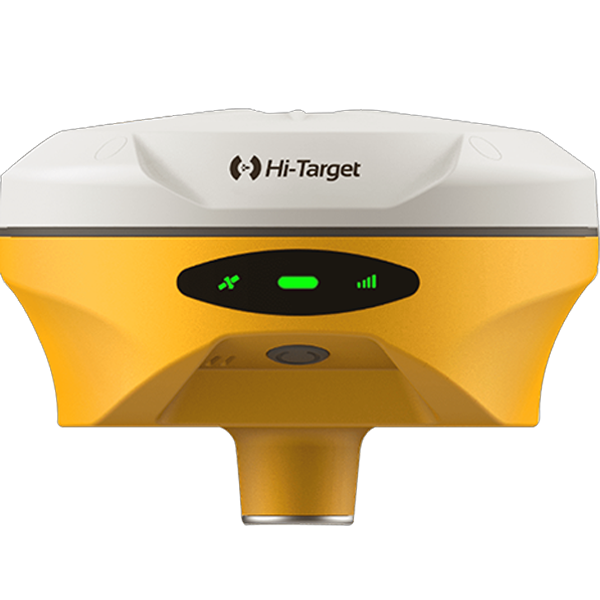

The Hi-Target V500 GNSS RTK Receiver is a compact, lightweight, and ultra-efficient surveying system designed for high-precision mapping, engineering layout, and construction stakeout. Equipped with a 1408-channel GNSS engine, upgraded IMU, advanced RTK algorithms, and a professional starlight camera for low-light AR stakeout, the V500 delivers fast fixes, centimeter accuracy, stable performance, and 24-hour battery endurance—making it ideal for field surveyors who need reliability, mobility, and precision.
Description
The Hi-Target V500 GNSS RTK Receiver is an advanced, high-precision positioning solution engineered to deliver outstanding performance in surveying, mapping, and construction layout projects. Combining a powerful 1408-channel GNSS SoC, multi-constellation tracking, and a new-generation IMU, the V500 provides rapid initialization, superior anti-interference capability, and dependable centimeter-level accuracy across challenging environments.
Designed for today’s fast-paced surveying workflows, the V500 features an HD starlight camera for exceptional low-light visibility, delivering smooth, accurate AR Live View Stakeout even at night or in dim conditions. Its immersive 360° AR stakeout capability allows seamless switching between the handheld controller and rover, making complex layout and point identification faster and more intuitive.
With a robust advanced RTK engine, the V500 achieves stable real-time performance, reliable RTK fixes, and enhanced accuracy through smart interference detection and adaptive filtering. The upgraded IMU supports calibration-free tilt surveying, enabling efficient one-tap measurement without leveling the pole, significantly improving productivity in terrain-restricted areas.
Compact, portable, and rugged, the V500 weighs only 0.75 kg, features full IP68 protection, and withstands extreme temperatures from –40°C to +75°C—ensuring consistent performance in demanding field conditions. Its built-in high-capacity battery provides up to 24 hours of continuous rover operation, making it ideal for long workdays and remote project sites.

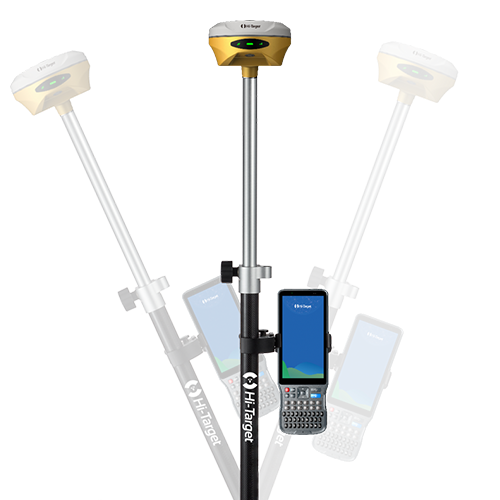

The system integrates seamlessly with the iHand55 Android controller and Hi-Survey software, which offers advanced road modules, DTM tools, CAD (DXF/DWG) support, map services, COGO functions, AR stakeout, QR scanning, and cloud integration, giving professionals a powerful end-to-end field workflow.
Whether used for cadastral surveys, engineering design, utility mapping, topographic data collection, or construction stakeout, the V500 GNSS RTK Receiver delivers outstanding accuracy, mobility, and field efficiency—making it one of the most versatile and advanced RTK solutions available for modern geospatial professionals.
Additional information
| Weight | 0.75 kg |
|---|---|
| GNSS Signals & Channels | Channels: 1408, 1760 GPS: L1C/A, L1C, L2P(Y), L2C, L5 / L1C/A, L2C, L2P, L5 BDS: B1I, B2I, B3I, B1C, B2a, B2b / B1I, B1C, B2a, B2b, B2I, B3I GLONASS: L1, L2, L3 / L1CA, L2CA, L2P, L3 Galileo: E1, E5a, E5b, E6 / E1, E5a, E5b, E5 AltBOC QZSS: L1, L2, L5, L6* / L1C/A, L1S, L2C, L5 NavIC: L5 / L5 SBAS: L1, L2, L5 PPP: B2b-PPP, Galileo E6-HAS / B2b-PPP |
| Physical Specifications | Dimensions: 130 mm × 68 mm Weight: ≤ 0.75 kg (1.65 lb) Operating Temperature: –40°C to +75°C Storage Temperature: –55°C to +85°C Humidity: 100% non-condensing IP Rating: IP68 (dustproof & temporary immersion to 1.0 m) Shock & Vibration: MIL-STD-810G, 514.6 Free Fall: Survives 2m fall onto concrete |
| Electrical | Internal Battery: 7.4V / 6800mAh lithium-ion, 24-hour RTK rover use External Power: Supported I/O Interface: 1 × USB-C port 1 × SMA antenna port Wi-Fi: 2.4GHz, 802.11 b/g/n Bluetooth: BT 5.2, 2.4 GHz |
| Positioning Performance | High-Precision Static Static & Fast Static Code Differential GNSS Positioning Real-Time Kinematic (RTK) Post-Processing Kinematic (PPK / Stop & Go) PPP positioning Positioning rate: 1Hz–20Hz Time to First Fix: Fast acquisition Hi-Fix support Tilt Survey Performance AR Stakeout Accuracy: 1 cm |
| System Configuration | Storage: 16GB internal ROM Output Format: ASCII (NMEA-0183) Output Rate: 1Hz–20Hz Static Data Format: GNS, RINEX Data Formats Supported: RTCM2.X, RTCM3.X, CMR Network Mode: VRS, FKP, MAC (NTRIP supported) RTK correction compatibility: Full network RTK support |
| Internal UHF Radio | Power: 0.5W / 1W / 2W adjustable Frequency: 410–470 MHz Protocols: HI-TARGET, TRIMTALK450S, TRIMMARK III, SATEL-3AS, TRANSEOT Working Range: 3–5 km typical, 8–15 km optimal Channels: 116 (16 scalable) |
| Camera | Professional starlight night-vision HD camera Large viewing angle Supports AR live-view stakeout |
